Optical communication field

TOSA-LC 10/25Gbps 850nm Transmitter Optical Subassembly

Features:
● Data rates up to 10/25Gbps
● 850nm multimode emission
● -10℃ to +85℃ operation
● High reliability
● Integrated monitor photodiode (MPD).
● Differentially driven
● LC plastic barrel
Applications:
● High speed Data Communication
● 10/25Gigabit Ethernet



  • Wavelength :

    850nm
  • Rate :

    10G/25G
  • Power :

    0.5

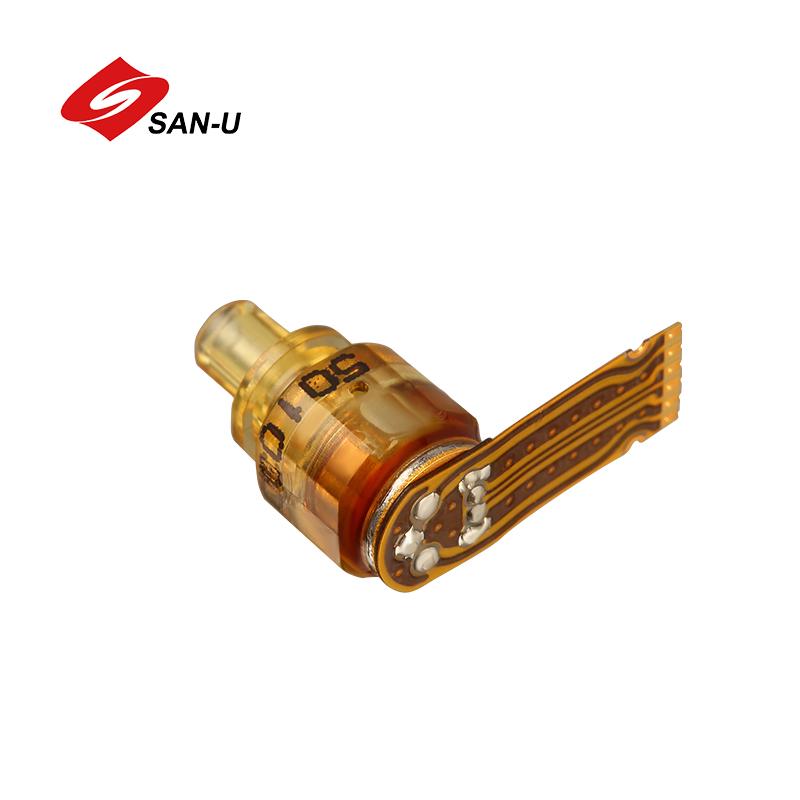

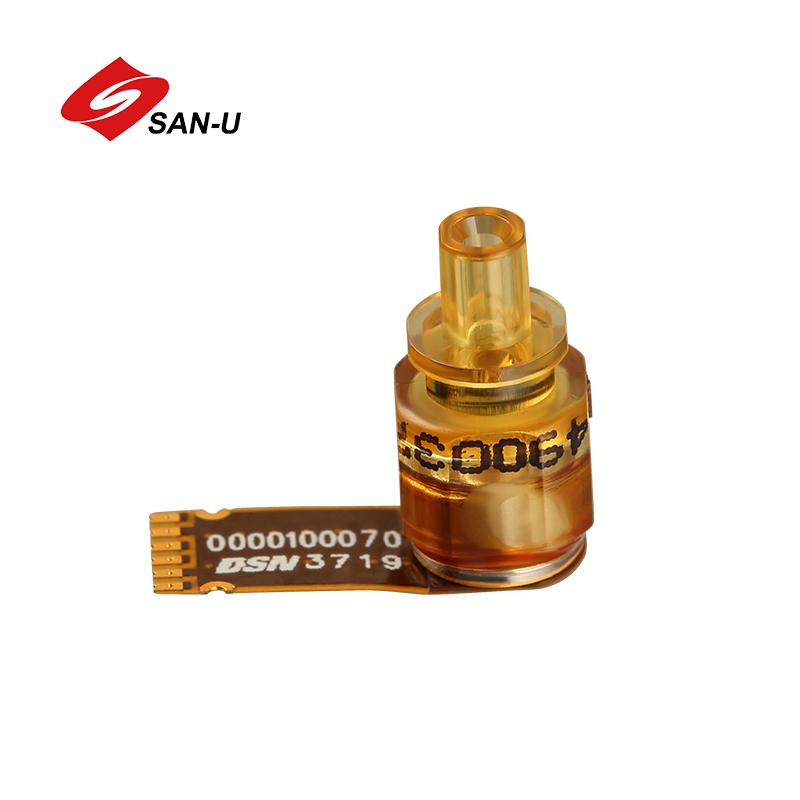

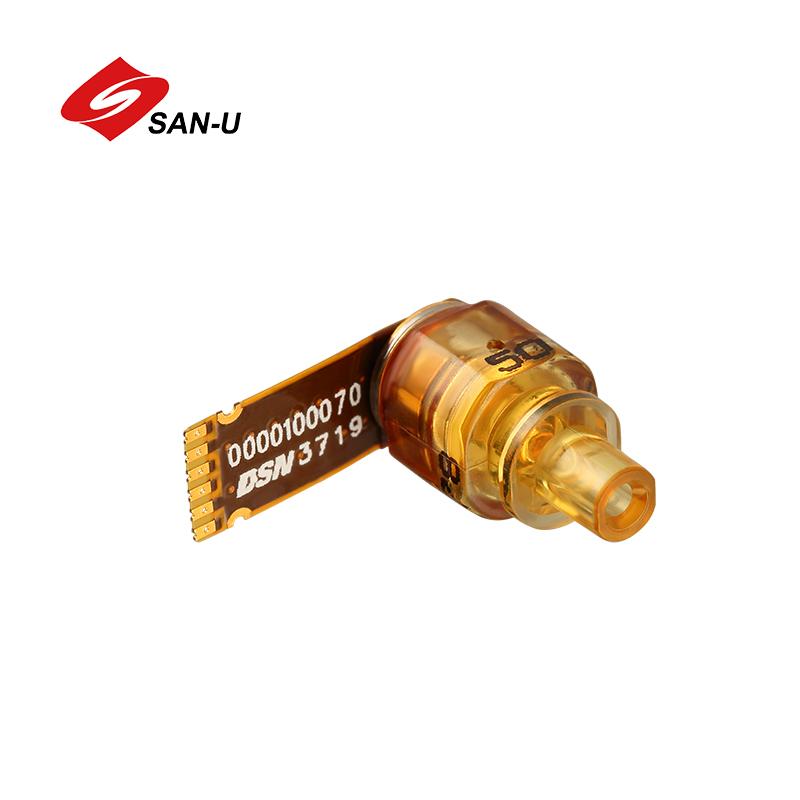

TOSA-LC 25Gbps 850nm with Flex
Features:
● Data rates up to 25 Gbps.
● 850nm multimode emission.
● 0℃ to +70℃ operation.
● Differentially driven.
● Low threshold and operation current.
● High reliability.
● Integrated monitor photodiode (MPD).
● LC plastic barrel, with flexible circuit attached.
Applications:
● High speed Data Communication.


   Absolute Maximum Ratings

Parameter

Symbol

Min

Max.

Unit

LD Reverse Voltage

Vr(LD)

--

5

V

LD Forward Current

If (LD)

--

12

mA

MPD Forward Current

If(MPD)

--

10

mA

MPD Reverse Voltage

Vr(MPD)

--

10

V

Operating Temperature

Top

0

70

Storage Temperature

Tstg

-40

85

Lead Solder Temperature

--

--

260

Lead Soldering Time

--

--

10

s



Specifications (T=25°C, unless otherwise noted)

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Threshold Current

Ith

--

--

0.7

0.9

mA

Forward Voltage

Vf

Iop=6.5mA

--

2.1

--

V

Series Resistance

R

Iop=6.5mA

--

100

--

?

Monitor Current(MPD)

Im

Iop=6.5mA

100

--

800

uA

Dark Current(MPD)

Id

Vr=3.3V

--

--

20

nA

Bandwidth

BW

Iop=6.5mA,-3dB

13

--

--

GHz

Optical Output Power

Po

Iop=6.5mA,

50/125 µm MMF

0.63

0.81

1.00

mW

Slope efficiency

SE

0.109

0.141

0.172

mW/mA

Central Wavelength

λc

Iop=6.5mA

840

850

860

nm

Spectral Width

Δλ

Iop=6.5mA,RMS

--

--

0.8

nm
